EveryStep Scripting Tool Object Model

In this article, you can find core classes, related fields, methods, properties, interfaces, and enums that can be used to edit or create an EveryStep Script manually in one of the available source code editors.

Classes
Interfaces
Enums

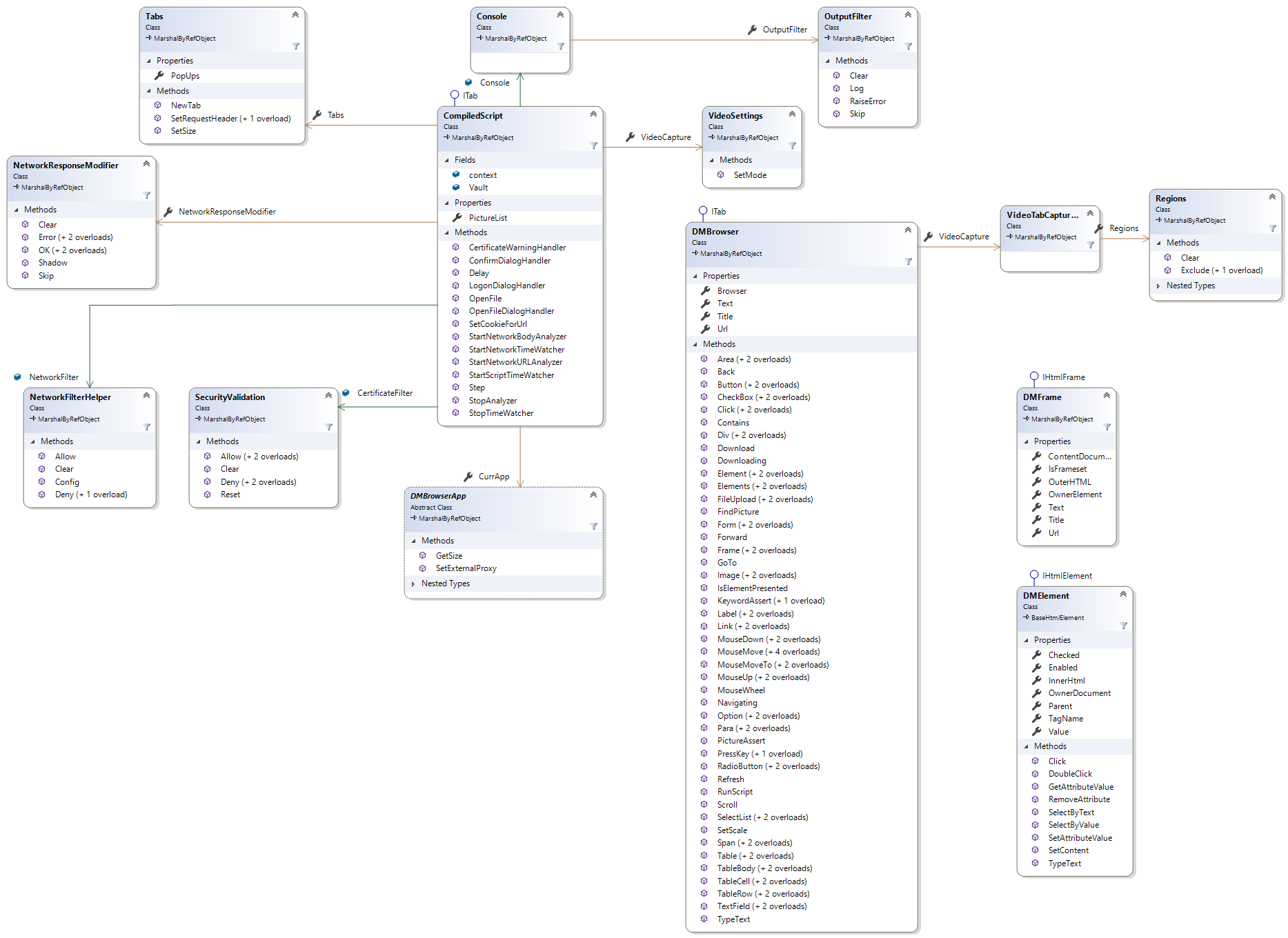

Find the EveryStep Tool Class Diagram below.

Core Classes

CompiledScript	Serves as the base class for the script execution context methods.
DMBrowser	Provides methods to support operations with web page content.
SecurityValidation	Supports operations with certificate filters.
Console	Supports console output filters.
OutputFilter	Provides methods for browser’s DevTools Console monitoring.
VideoSettings (updt: VideoCapture )	Provides a method to set video recording modes.
DMBrowserApp	Supports method calls to the playback engine.
NetworkFilterHelper	Provides methods to enable network filters and filter out certain web elements upon the script execution.
NetworkResponseModifier	Provides methods to set a series of monitoring and alerting rules based on specific content, domain name, and error type.
Tabs	Supports methods on the script level.
VideoTabCaptureSettings	Represents a region that will be hidden on the web page on playback of the recorded video.
Regions	Provides methods to set the region that will be hidden on the web page on playback of the recorded video.
DMElement	Implements the IHtmlElement interface.
DMFrame	Implements the ITabElement interface.

Interfaces

ITabElement	Provides functionality to work with <frame> and <iframe> HTML elements.
IHTMLElement	Provides functionality to work with HTML elements. See the DMElement class for implementation.
IHtmlDocument	Supports processing of the HTML document.

Enums

CertificateWarningHandleType

public enum CertificateWarningHandleType
{
 Ignore,
 DoNotIgnore,
 }

CertificateOption

public enum CertificateOption
    {
        None,
        Version,
        SerialNumber,
        SignatureAlgorithm,
        SignatureHashAlgorithm,
        Issuer,
        ValidFrom,
        ValidTo,
        Subject,
        PublicKey,
        PublicKeyParameters,
        EnhancedKeyUsage,
        SubjectAlternativeName,
        AuthorityKeyIdentifier,
        SubjectKeyIdentifier,
        KeyUsage,
        Thumbprint
    }

Operator

 public enum Operator
    {
        None,
        Equals,
        DoesNotEqual,
        Contains,
        DoesNotContain,
        StartsWith,
        EndsWith,
        MatchRegExp,
        Less,
        More,
        LessOrEqual,
        MoreOrEqual
    }

ConfirmDialogHandleType

public enum ConfirmDialogHandleType
   {
         OkButtonClick,
         CancelButtonClick
   }

WatcherType

public enum WatcherType
    {
        Alert
    }

MaskType

public enum MaskType
    {
        Wildcard,
        Regex
    }

AnalyzingType

public enum AnalyzingType
    {
        Match,
        NotMatch
    }

NetworkWatcherType

public enum NetworkWatcherType
    {
        Sum, Average, Each
    }

ErrorTypes

public enum ErrorTypes {
Success,
Validation,
Runtime,
Custom_Script,
Certificate,
Cryptographic,
TCP,
DNS,
UDP,
HTTP,
FTP,
SFTP,
SMTP,
POP3,
IMAP,
ICMP,
ICMP_V6,
DNSBL,
Media,
SIP,
ActiveSync,
Critical,
}

NetworkPermissions

public enum NetworkPermissions
    {
        AllowAll,
        DenyAll
    }

MessageType

 public enum MessageType
    {
        [Description("Information")]
        INFO = 1,
        [Description("Warning")]
        WARNING = 2,
        [Description("Error")]
        ERROR = 4,
        [Description("All")]
        ALL = INFO|WARNING|ERROR
    }

MessageSource

    public enum MessageSource
    {
        None = 0,
        Security = 1,
        JavaScript = 2,
        HTML = 4,
        Other = 8,
        All = Security | JavaScript | HTML | Other,
    }

VideoMode

 public enum VideoMode
    {
        On,
        Off,
    }

RegionBehaviour

  public enum RegionBehaviour
    {
        BindToScreen,
        BindToPage,
        RealTimePicture
    }

OpenFileDialogButton

 public enum OpenFileDialogButton
    {
        Ok,
        Cancel
    }
